| 加工定制 : | 是 | 類型 : | 拉伸及粘結強度試驗 |
| 品牌 : | 榮計達儀器 | 型號 : | LBY-VI |
| 外形尺寸 : | 700×700×830mm | 重量 : | 115KG |
| 產品用途 : | 拉伸及粘結強度試驗 |
產品簡介：

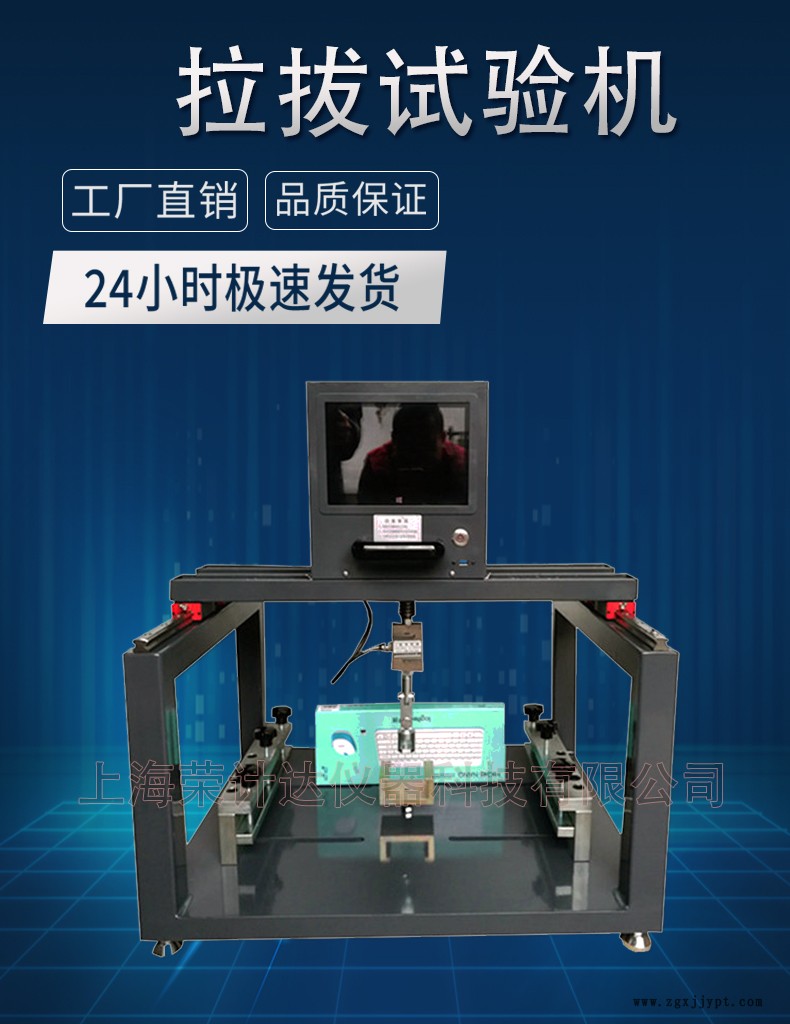

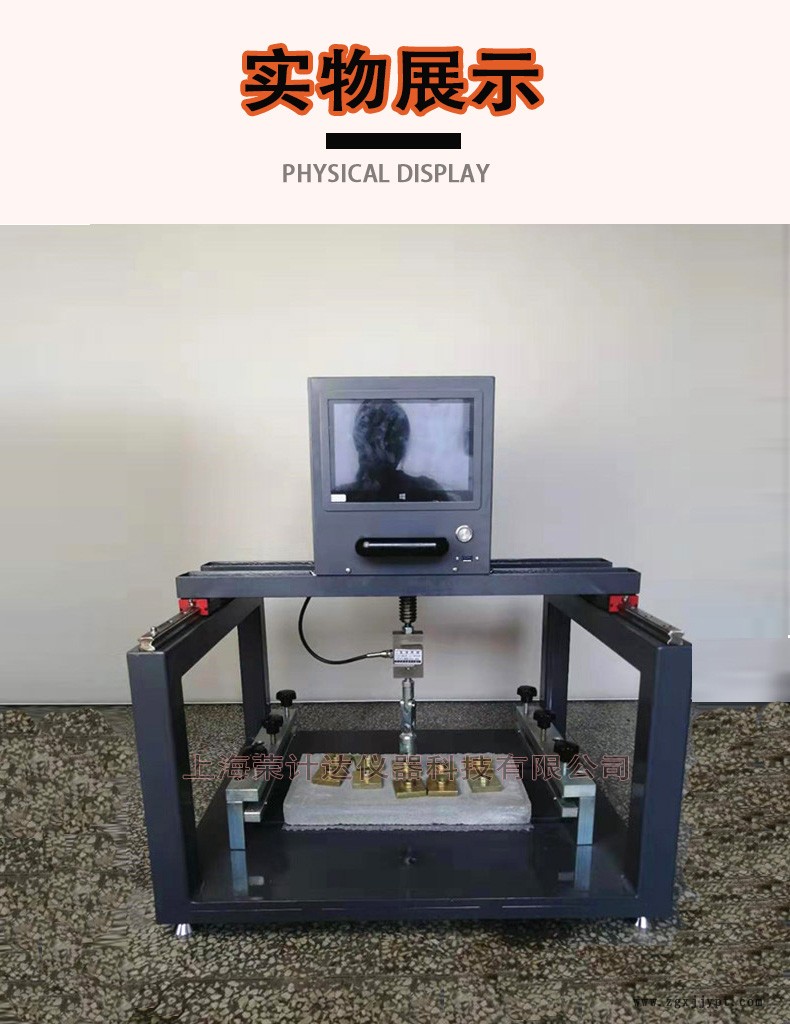

適用于干混砂漿、保溫材料、陶瓷墻地磚膠粘劑、復層建筑涂料、建筑外墻用膩?zhàn)拥睦旒罢辰Y(jié)強度試驗，試驗機外觀精美、工藝細膩，采用伺服控制系統，可實現勻速加載效率高穩定性好。采用觸摸屏控制，友好的人機操作界面。儀器內部設有行程限位和正負力值過載保護功能。具有測試速度可調、負荷測量精度高、操作方便等特點。適用于工廠、建筑工程質量檢測站、建筑公司、產品質量檢驗所、科研院校、道路橋梁現場等，生產檢驗、開發研究等領域。
Product introduction:
It is suitable for tensile and bond strength test of dry-mixed mortar, thermal insulation materials, ceramic wall and floor tile adhesives, multi-layer architectural coatings, and putty for building exterior walls. The tester has a beautiful appearance and delicate technology. The servo control system is used to achieve uniform loading High efficiency and good stability. Touch screen control, friendly man-machine operation interface. The instrument is equipped with travel limit and positive and negative force value overload protection. It has the characteristics of adjustable test speed, high load measurement accuracy, and convenient operation. Suitable for factories, construction engineering quality inspection stations, construction companies, product quality inspection institutes, scientific research institutions, road and bridge sites, production inspection, development and research fields.
特點：

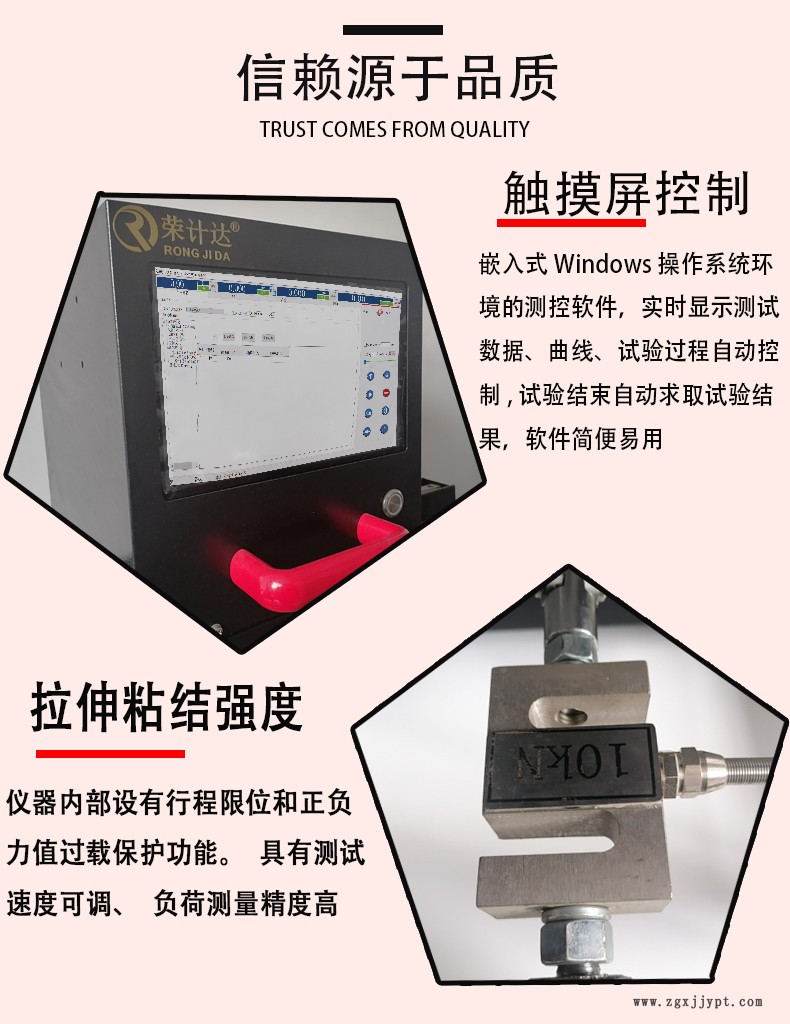

★嵌入式Windows操作系統環境的測控軟件，實時顯示測試數據、曲線、試驗過程自動控制，試驗結束自動求取試驗結果，軟件簡便易用；
★采用多點勻速加載可滿足不同標準試驗要求。
★ 采用伺服控制系統，**控制檢測過程。
★ 采用觸摸屏控制，便于人機對話。
★ 試驗機內部設有行程限位和正負力值過載保護功能，防止誤操作引起試驗機的損壞。
★ 采用掛丁式拉拔頭。裝卸方便快速。
Second, characteristics:
★ Embedded Windows operating system environment measurement and control software, real-time display of test data, curves, automatic control of the test process, test results are automatically obtained after the test, the software is easy to use;
★ Multi-point uniform loading can meet different standard test requirements.
★ Servo control system is adopted to control the detection process.
★ Touch screen control for easy man-machine dialogue.
★ The travel machine has internal travel limit and positive and negative force value overload protection functions to prevent damage to the test machine caused by misoperation.
★ Hanging-type drawing head. Easy loading and unloading.
技術參數：
★大拉拔力：10KN
★有效檢測范圍：大實驗力的1%-
★負荷分辨率：1N
★負荷測量精度：示值的±1%以內
★拉拔速度：1mm-200mm/min
★拉伸范圍：150mm
★試件范圍：300×500mm
★試件**大厚度：70mm
★驅動方式：伺服電機驅動
★電源：單相交流220V / 50Hz，電機功率200 W
★外形尺寸：700×700×830mm
★重量:115KG
Third, the technical parameters:
★ ** Big drawing force: 10KN
★ Effective detection range: ** 1% of large experimental force-**
★ Load resolution: 1N
★ Load measurement accuracy: within ± 1% of the indicated value
★ Drawing speed: 1mm-200mm / min
★ Stretching range: 150mm
★ Test piece range: 300 × 500mm
★ Test piece Large thickness: 70mm
★ Drive mode: servo motor drive
★ Power supply: single-phase AC 220V / 50Hz, motor power 200 W
★ Dimensions: 700 × 700 × 830mm
★ Weight: 115KG
