| 電線最大外徑 | 2mm |
|---|---|
| 加工定制 | 是 |
| 絕緣材料 | PEEK |
| 溫度范圍 | 260 |
| 用途 | 核電 |
| 產地 | 深圳 |
| 每卷長度 | 100M |
| 保質期 | 36個月 |
| 標稱截面 | 1 |
| 等級 | 優級品 |
| 電線外徑 | 6 |
| 絕緣厚度 | 1 |
| 上市時間 | 2013年春 |
| 芯數 | NPC |
| 顏色 | 白色 |
| 揚程 | 100m |
| 護套材質 | PEEK |
| 線芯材質 | 其它 |
| 貿易屬性 | 外貿+內貿 |
| 品牌 | 科普亞 |
| 型號 | CIT-CSR007 |
| 質量認證 | AAA |
本產品高溫電線耐溫-100℃——250℃，耐油、耐高壓、耐強酸、強堿、耐各種有機溶劑、抗紫外線等。能在各種惡劣環境長期使用且不影響電線本身的性能，廣泛適用于各電子電器、加熱器、汽車、核能、船舶、傳感器產業等高科技工業產品中。
核能防輻射PEEK電線電纜的詳細描述：

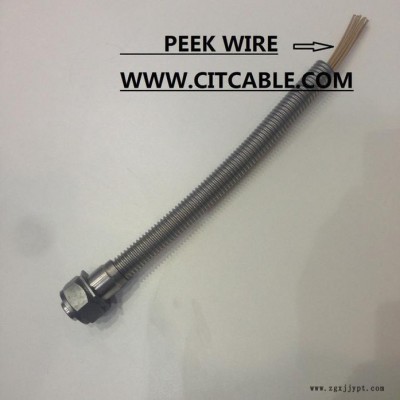

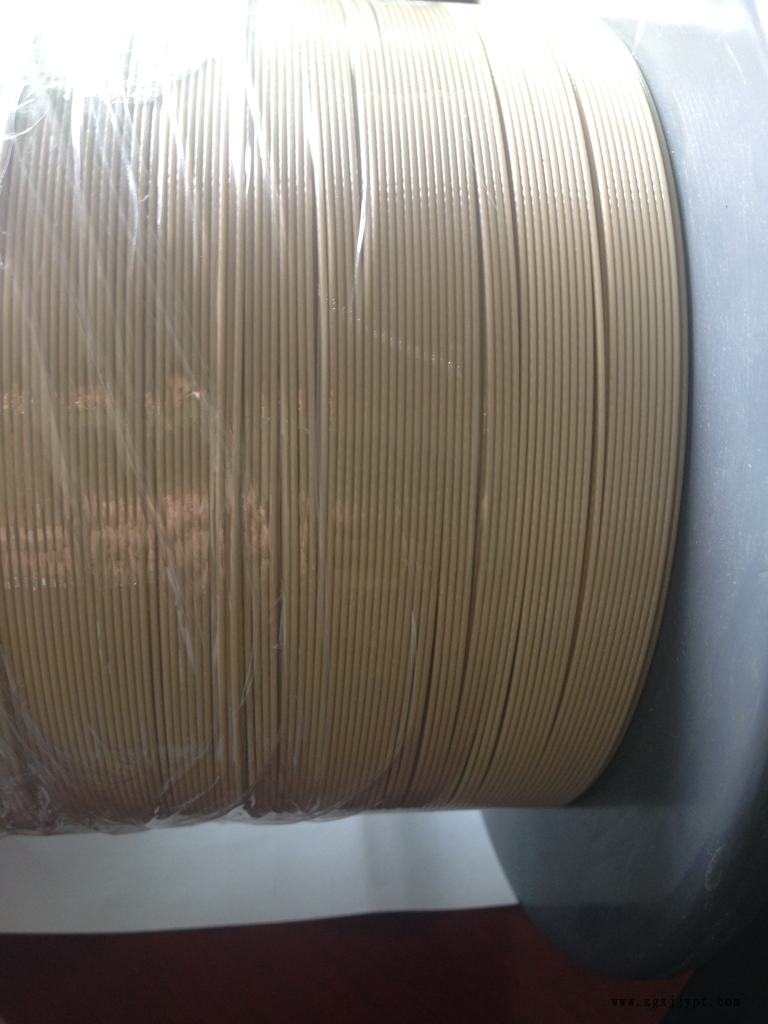

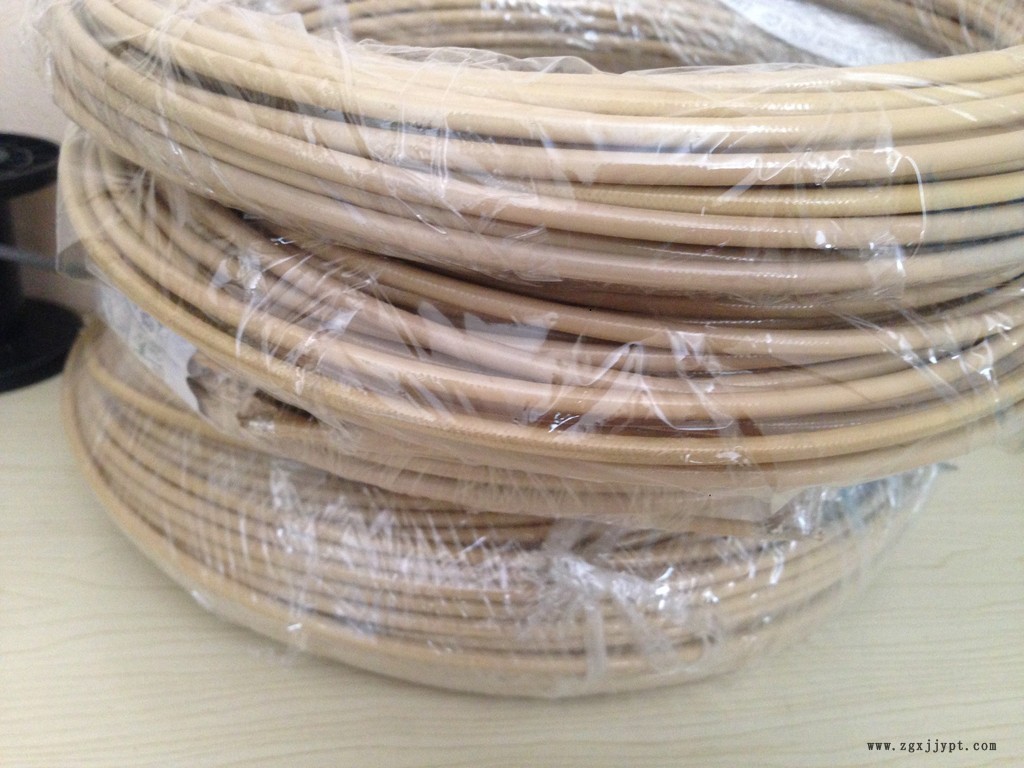

核能防輻射PEEK電線電纜
| PEEK WIRE CABLE FOR NUCLEAR 核能聚醚醚酮(PEEK)電線電纜 | |||||||
| 產品描述 PRODUCT DEION | |||||||
| 額定電壓:300V ---20KV-DC | 溫度范圍:-65℃～+260℃ | ||||||
| Nominal: Voltage 300V ----- 20KV-DC | Temperature Range:-65℃～+260℃, -100℃for non-flex applications | ||||||
| 導體: 32-8AWG鎳鍍銀或鍍銀銅線 | 絕緣體：聚醚醚酮? | ||||||
| Conductor:32-8AWG Nickel plating Silver | Insulator:Polyetheretherketone (PEEK) | ||||||
| 顏色/Colours:黑/本色 Black,Transparent and others | |||||||
| 特性：機械特性、耐疲勞性、耐高溫、耐酸、堿、油、阻燃、耐γ輻照的能力很強(109 Rad)。 | |||||||
| Charcteristic: PEEK cable outstanding and excellent abrasion resistance 、dielectric strength ,chemical resistance、thermal endurance in long、protects against corrosion、Radiation Resistance 109Rad = 107Gy、 Amorphous or crystalline PEEK Wire Cable available、Various types Conductor of silver and nickel-plated wire as well as custom wire types | |||||||
| 適用范圍： 用于核能HV防輻射安全、 核電地熱電線、設備用電線、核電自動化儀表設備電線、核電控制器用電線、核電熱電偶電線、核電電阻電線、核電汽輪發電機定子繞組鐵芯測溫電線、核電溫度傳感電線等引出連接線 | |||||||
| Applications: PolyEtherEtherKetone (PEEK) Cable for H.V. Radiation with Nuclear Safety 、Heating wire for Nuclear Hook Up Wire for Control panels for Nuclear Application、Nuclear steam generator systems、Lead Wire for Electrical Penetration Assembly、Wire Harness Assembly for Nuclear Application. | |||||||
| 導體/Conductor | 絕緣體/Insulator | 電氣特性/Electrical Characteristic | 備注Remark | ||||
| 線號 AWG | 導體構造 Conductor construction NO×Φmm | 直徑 Diameter mm | 絕緣厚度 Insulator Thick mm | 完成外徑 Over Diameter mm | 導體電阻 Realst.max Cuc.c 20℃ohm/km | 允載電流 Permissiblle ampacity 20℃-AMR | Conductor Material |

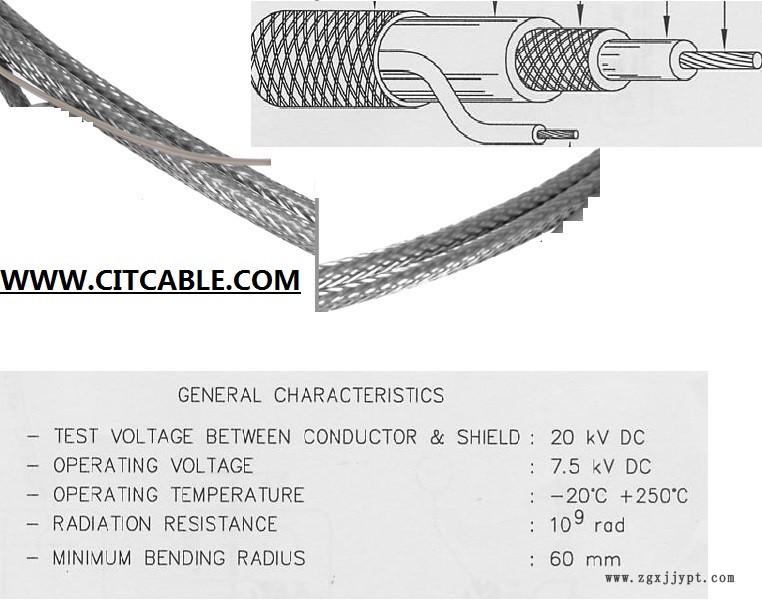

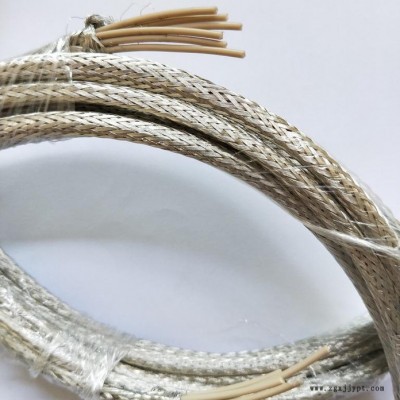

| PEEK Wire Cable For H.V. Radiation Safety Applications 核能HV防輻射安全應用 | |||||||
| 22 with Braided | 19×0.16 | 0.80 | 0.70 | 2.20 | 56.40 | 8.51 | Nickel Plating Copper |
| 22+22 with Double Shield AISI 304 Braided | 19×0.16 | 0.80 | 0.70 | 2.20 | 56.40 | 8.51 | Nickel Plating Copper |
| 19×0.16 | 0.80 | 0.25 | 1.30 | ||||
| PEEK Wire Cable For Nuclear Superior Performance Applications 核能行業應用 | |||||||
| 15 | 1×1.40 | 1.40 | 0.30 | 2.00 | 11.50 | 17.8 | Solid Bare Copper |
| 20 | 19×0.20 | 1.05 | 0.35 | 1.75 | 34.60 | 6.94 | Silver Plating Copper |
| 24*4C with Braided | 7×0.20 | 0.61 | 0.15 | 0.91 | 93.25 | 2.57 | Silver Plating Copper |
| 26*2C | 1×0.46 | 0.46 | 0.20 | 0.86 | 148.94 | 1.61 | KN/KP |
| 26*6C with Braided | 7×0.15 | 0.46 | 0.20 | 0.86 | 148.94 | 1.61 | Pure Nickel |
| CITCABLE will custom manufacture this radiation resistant wire for precise reuqiremnts of your project,All Nuclear PEEK Wire Cable are custom ordered. Wall thicknesses available from 0.05 mm-0.40 mm depending on the conductor size and cable construction . 我們熱誠歡迎各行各業定制各種特殊規格的PEEK核能電線電纜 | |||||||
